L-bracket uses & ideas

One bracket. A hundred jobs.

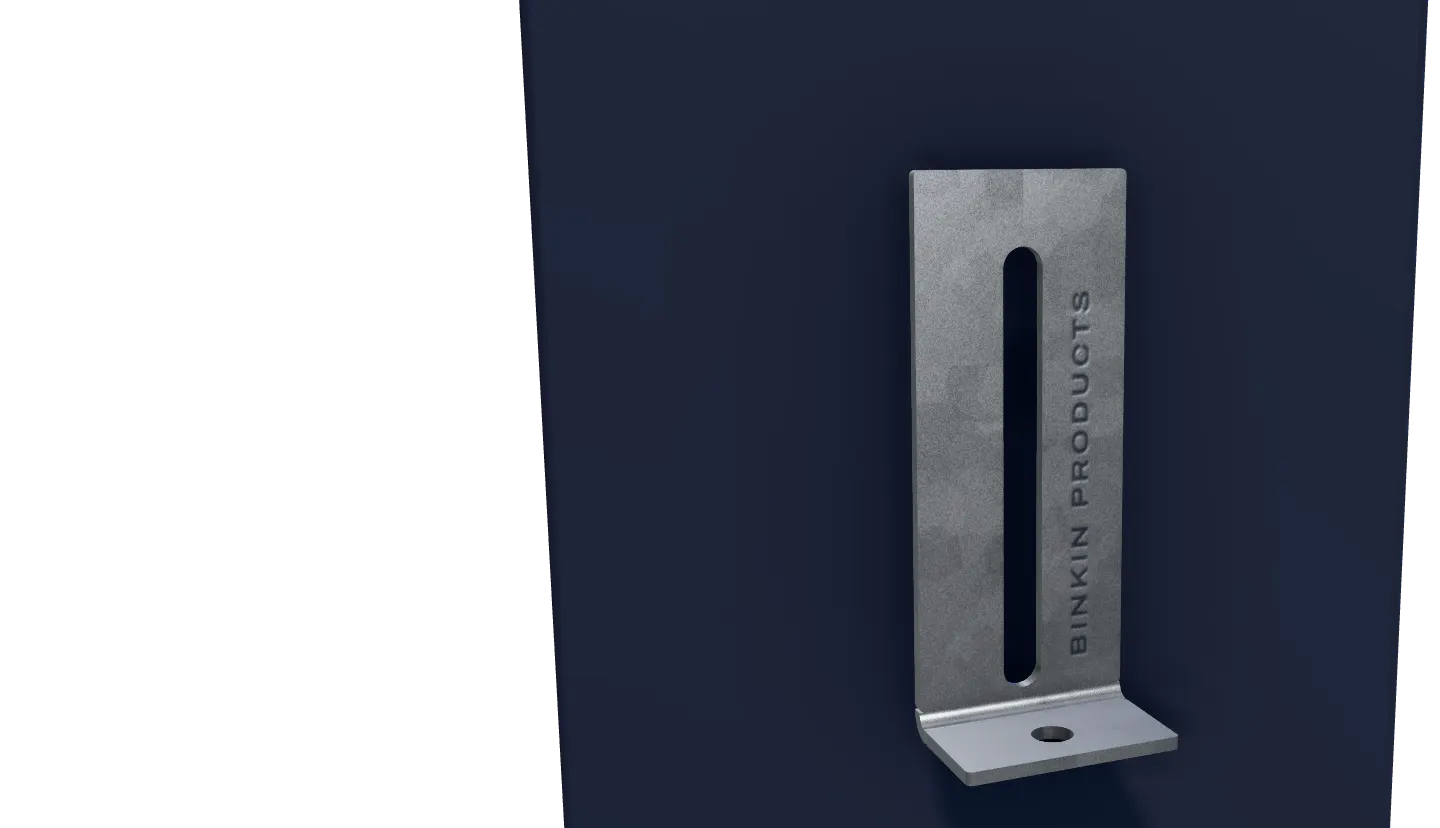

A 2-inch slot means you set it, slide it level, then lock it. No second hole, no crooked shelf. Scroll, and watch it work: five jobs in plain sight, then five where it disappears.

1. Anchor
2. Slide
3. Lock

01 · Shelves

Level on a wall that isn’t.

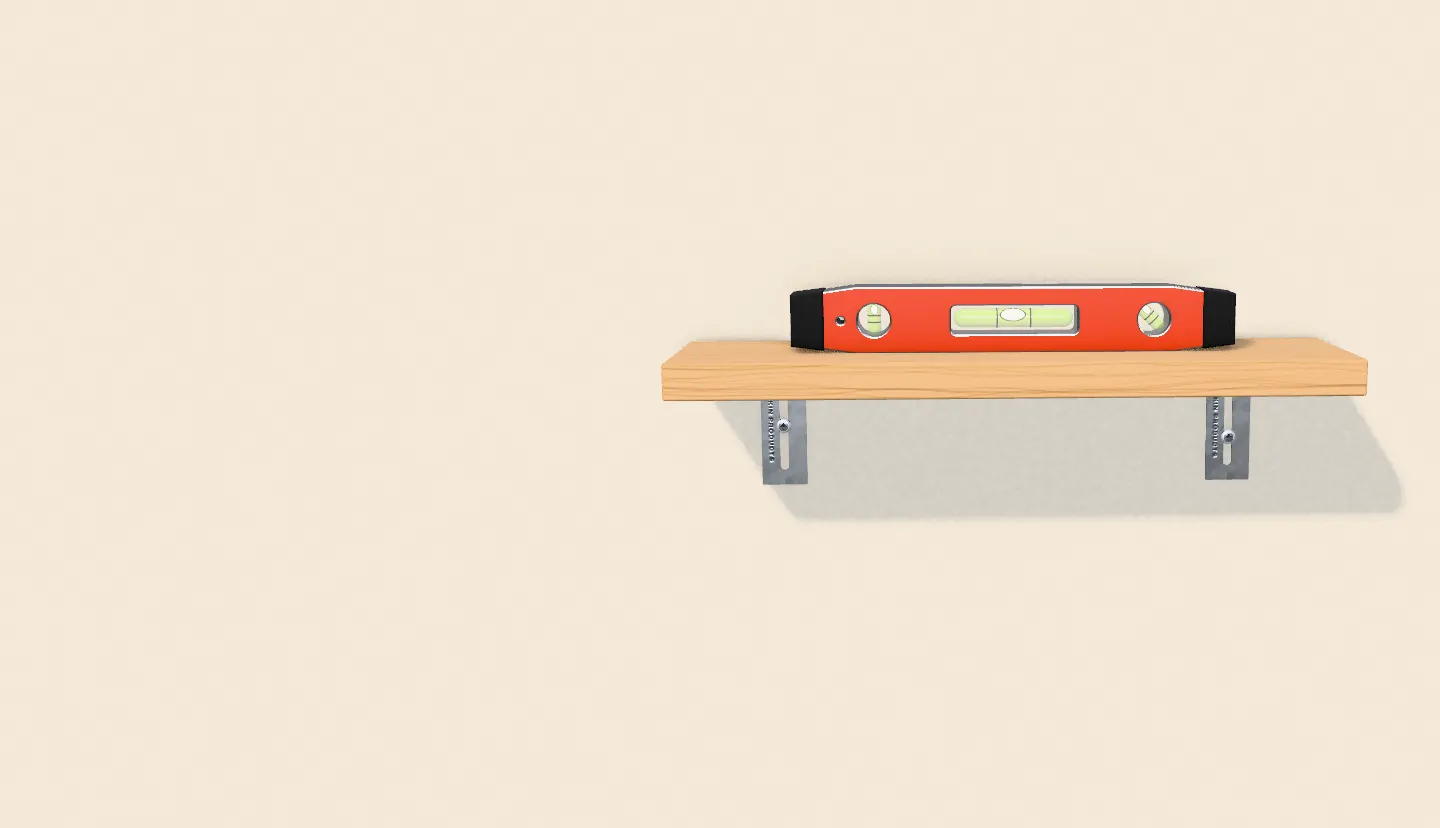

The second hole came out low. With fixed holes you'd drill again. Here you slide the bracket up until the bubble's centred. Try it.

02 · Signs & displays

Straight where customers look.

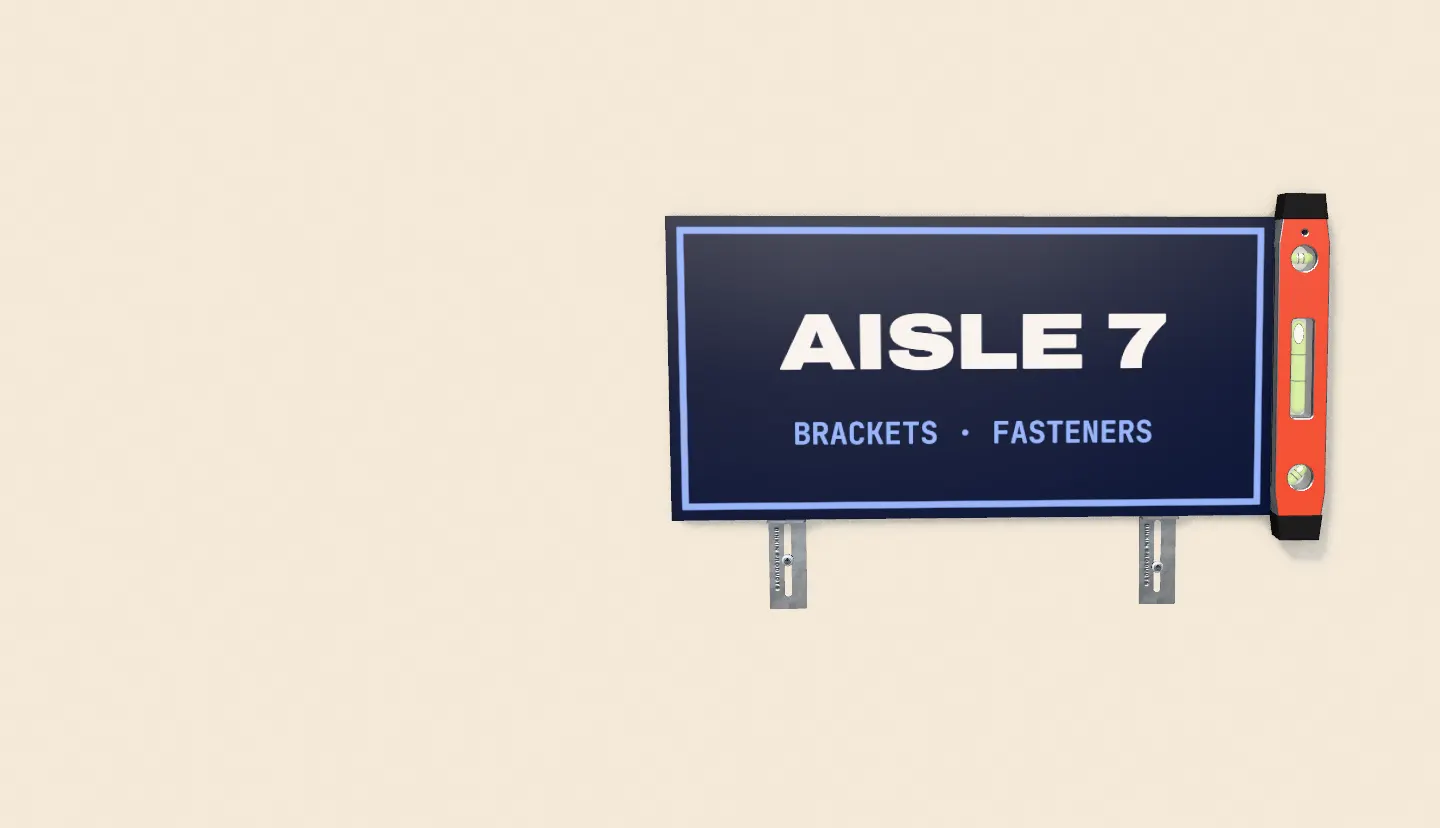

Rest the sign on the short legs and slide until it's square. Hold a level upright on the edge and the plumb bubble tells you. Then lock it and fix it through the anchor holes.

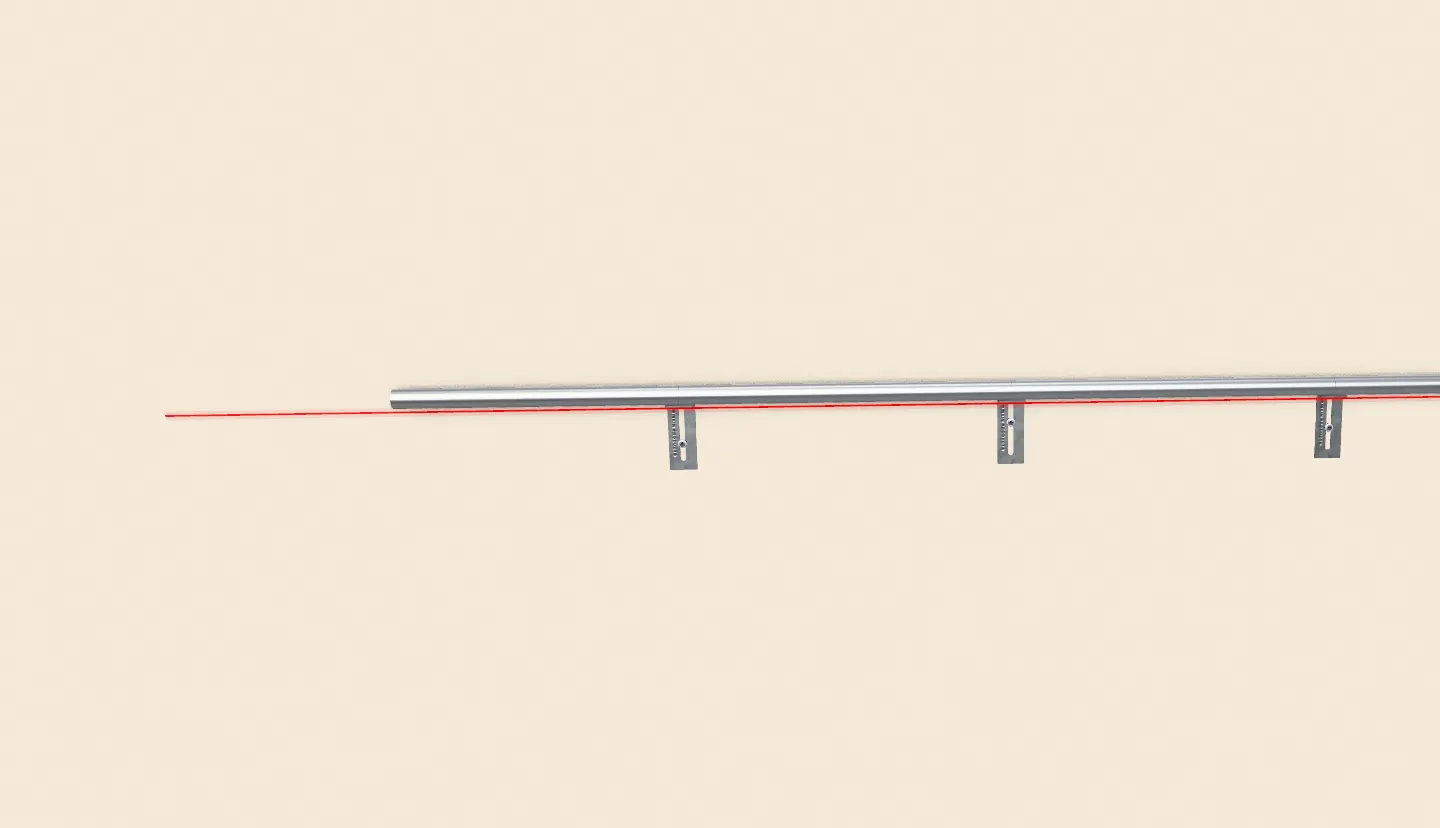

03 · Conduit & cable

One line, wherever the holes landed.

Set a laser, put a screw in each slot and slide every bracket to the line. The run comes out straight.

04 · Fences

Lift the rail back to true.

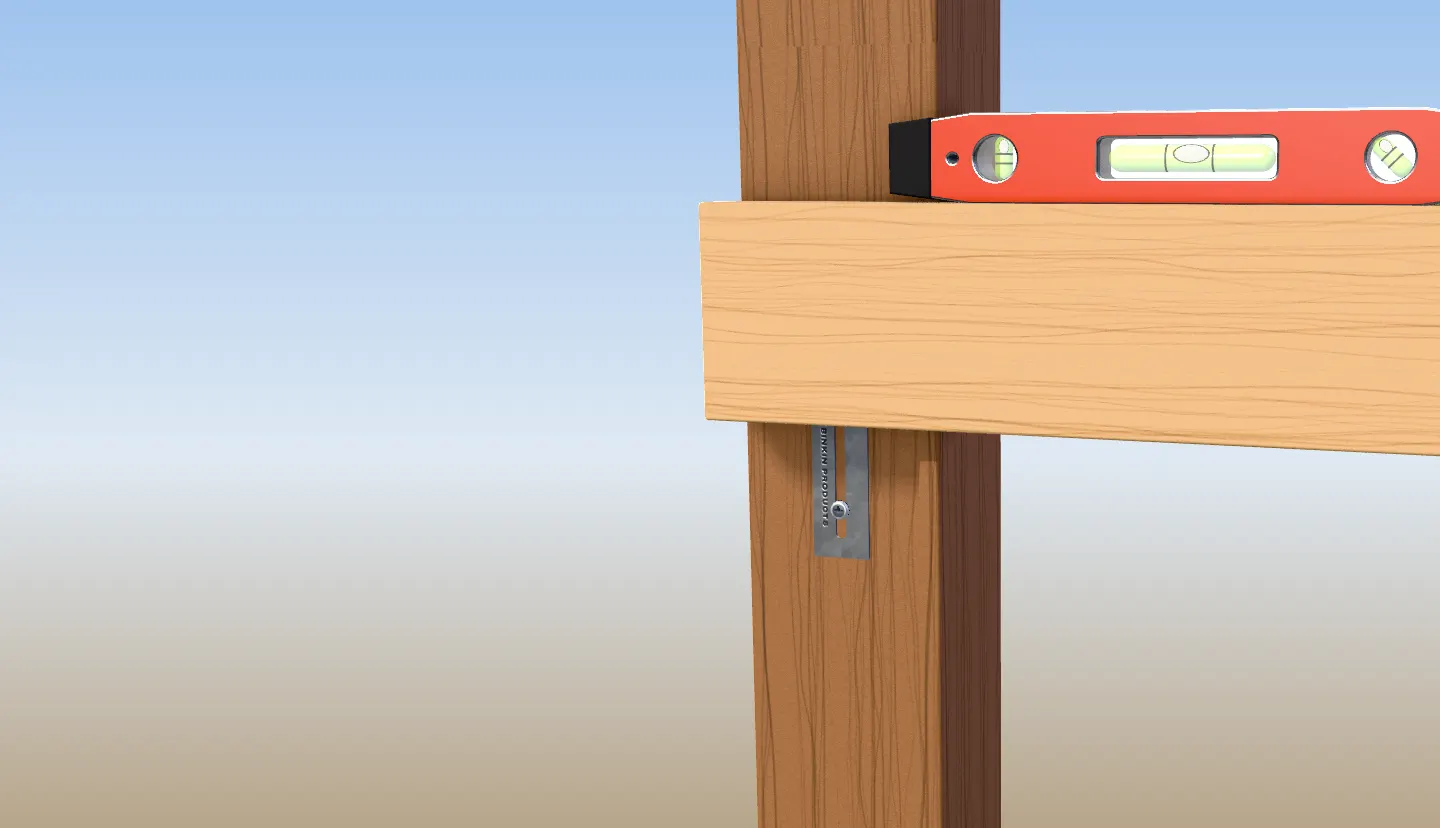

A rail that's dropped at the post rides back up on the bracket. Galvanized, so it's fine outdoors: rust resistant, not rust proof.

05 · Adjustable reach

Two brackets, one adjustable arm.

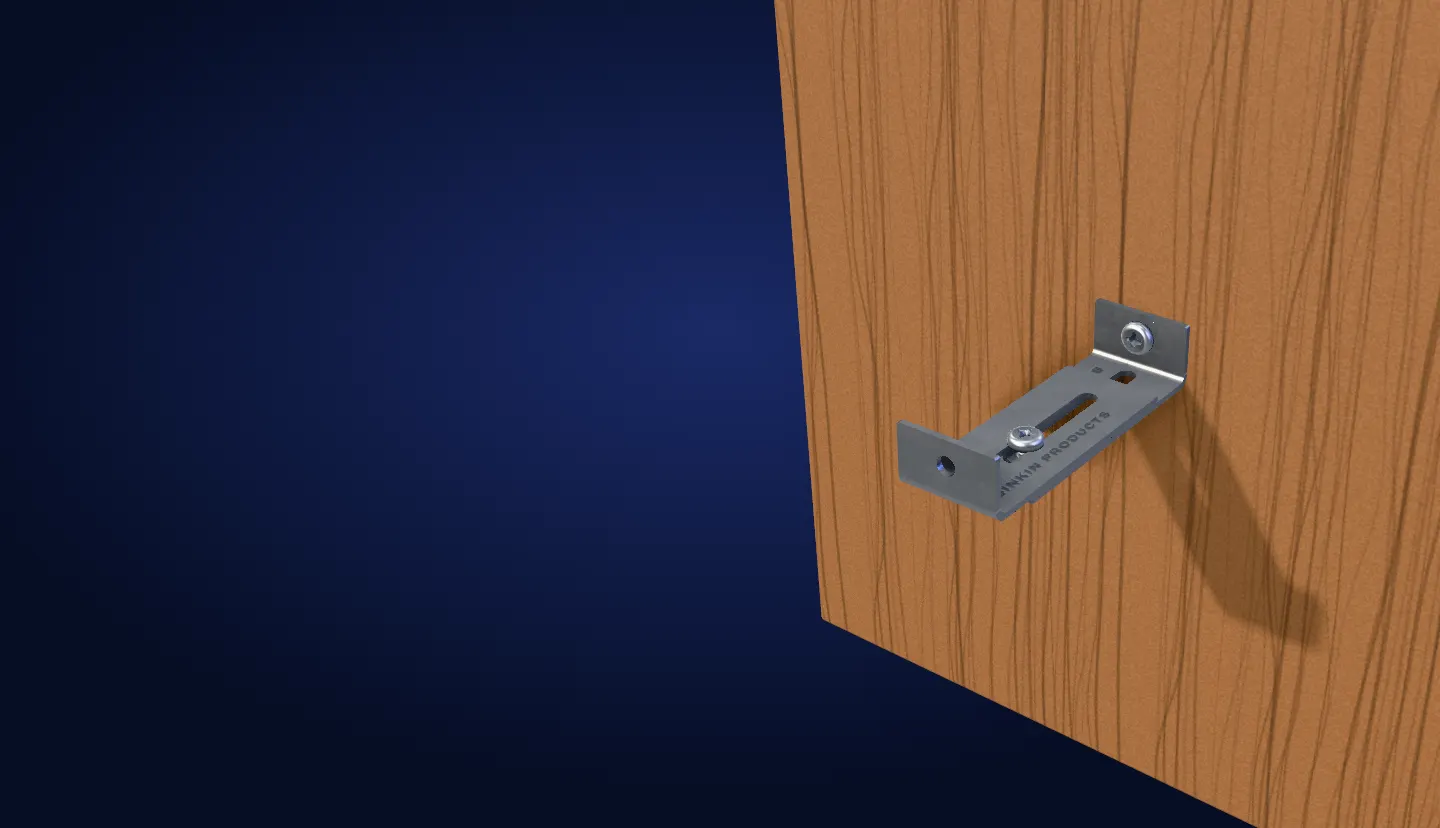

Screw one flat to the wall, lay a second on top, bolt through both slots and slide it out to the reach you need.

06 · Hidden jobs

The slot does the leveling. Then it disappears.

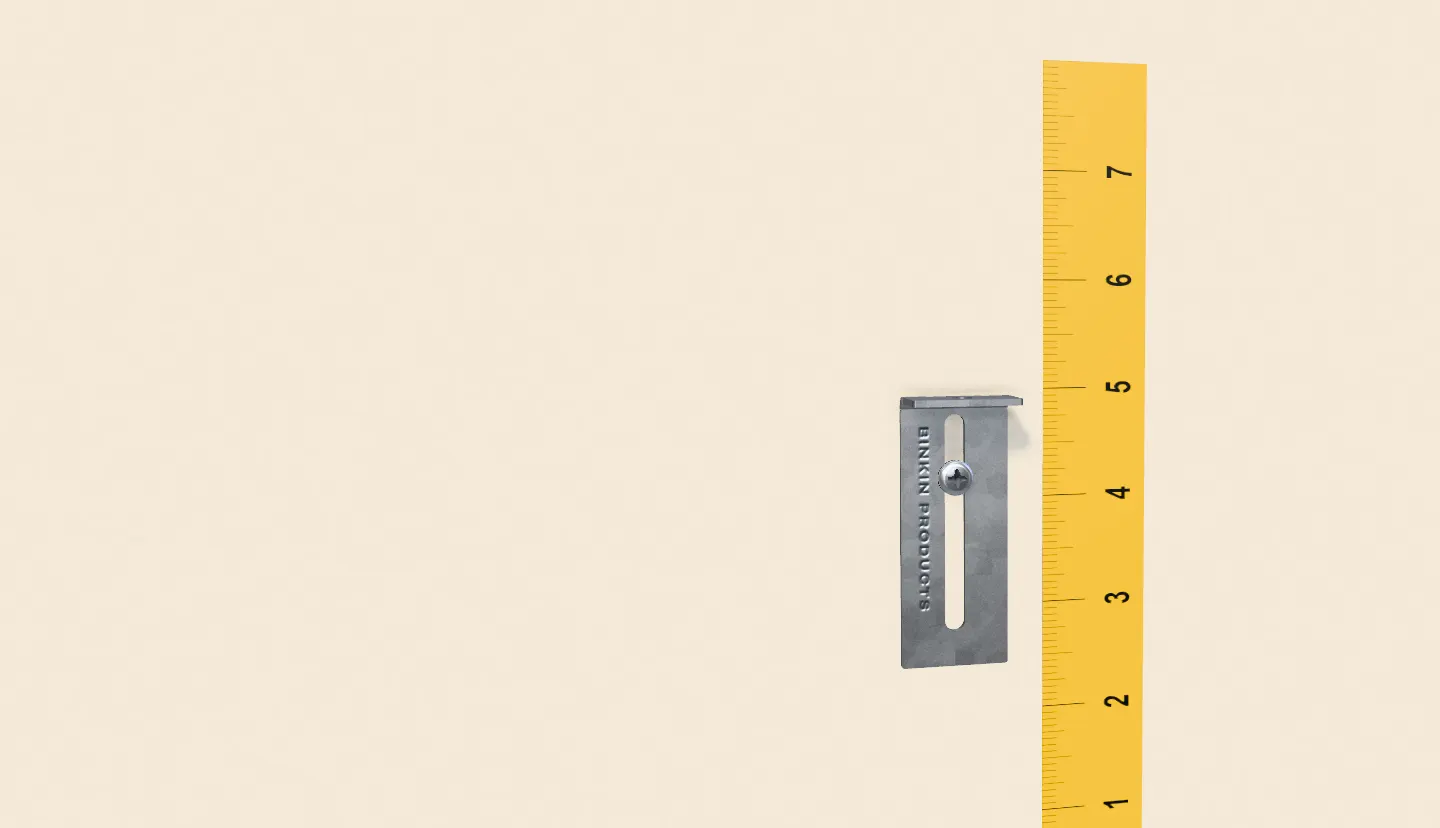

Same screw, two inches of play: the bracket slides on it until the job sits level. In the next four, the bracket ends up where nobody sees it.

07 · Whiteboards & signs

Level, with nothing showing.

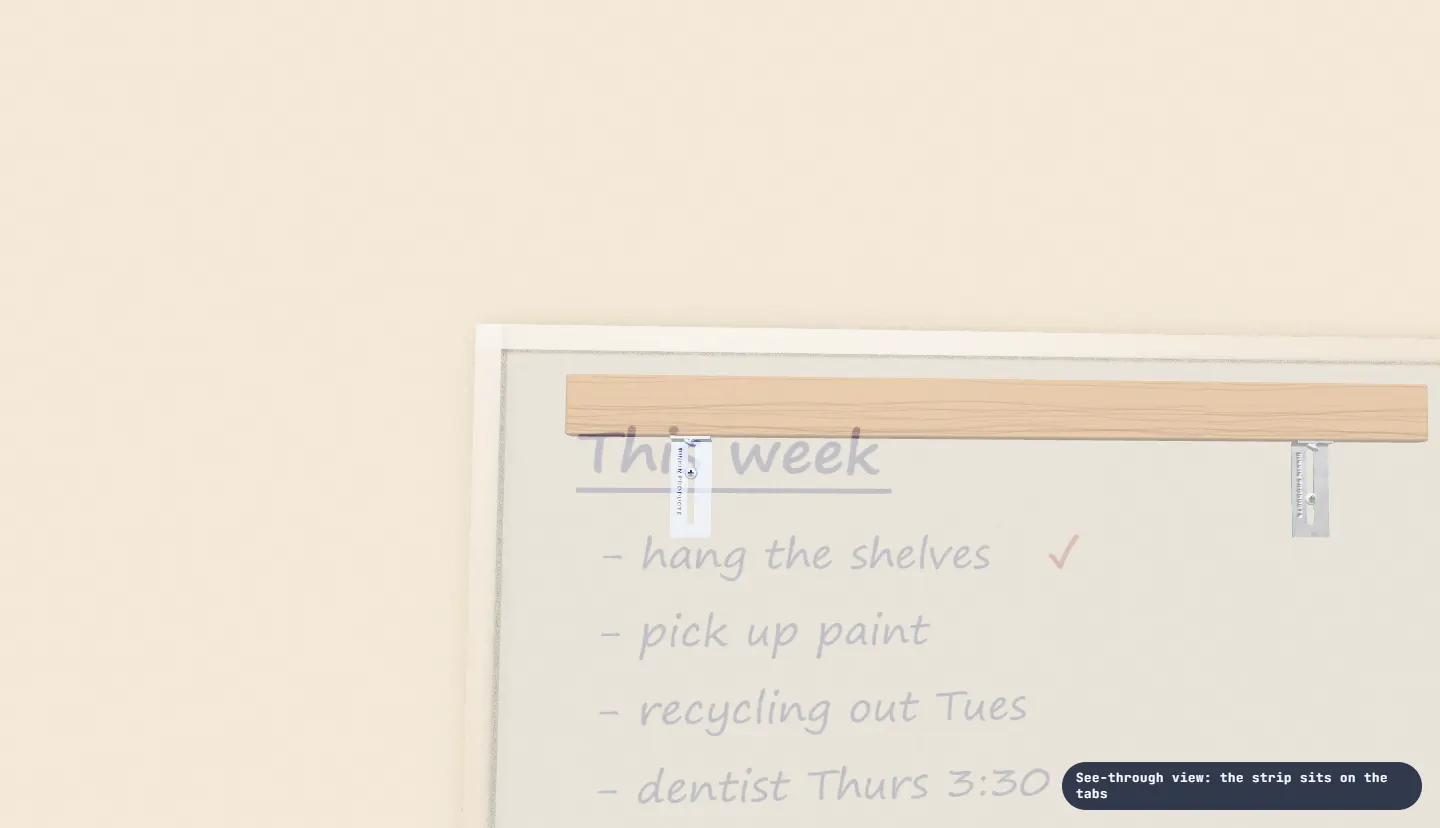

Level the brackets on the wall, glue a strip of 1×2 across the back of the board, sit it on the tabs and screw up through each tab hole. The brackets vanish behind it.

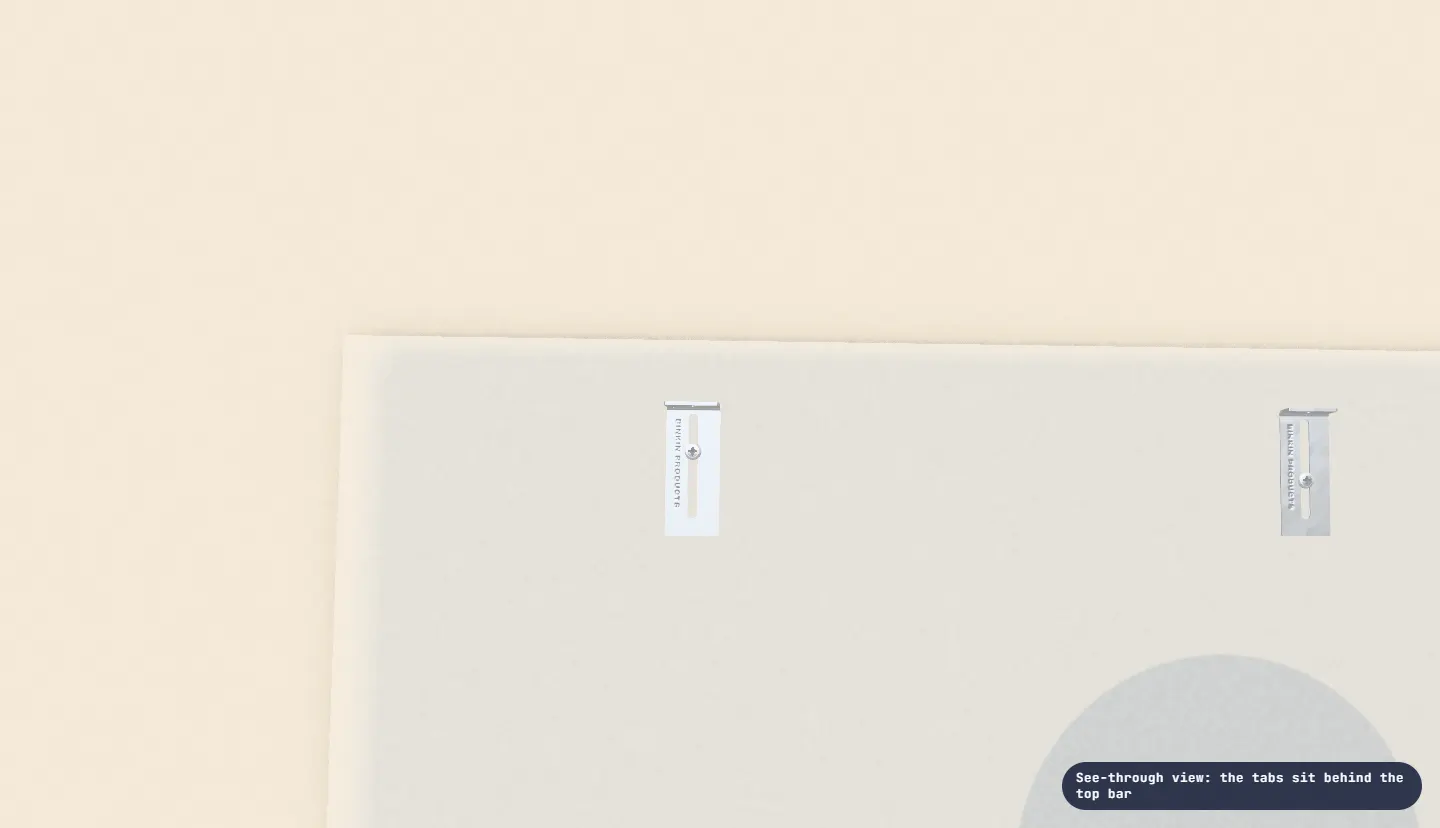

08 · Big art

Hang it level. Hide how.

The tabs slip in behind the canvas’s top stretcher bar. Slide each bracket until the picture hangs dead level. No second nail hole.

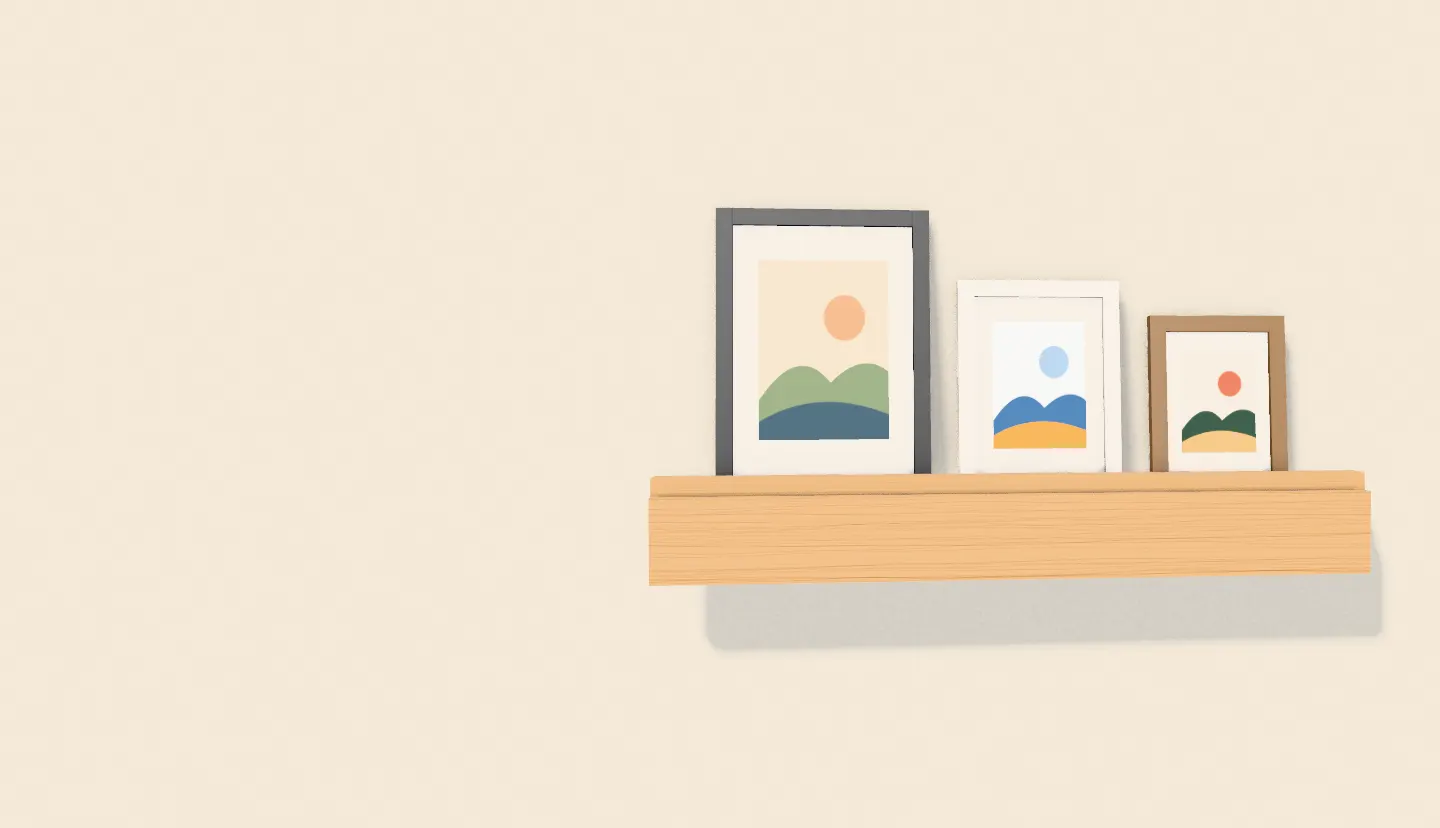

09 · Picture ledges

A level ledge, so the frames are too.

The top board sits on the tabs and screws up through them; a front board covers the brackets, and a lip keeps the frames from sliding.

10 · Tabletops

Room for the wood to move.

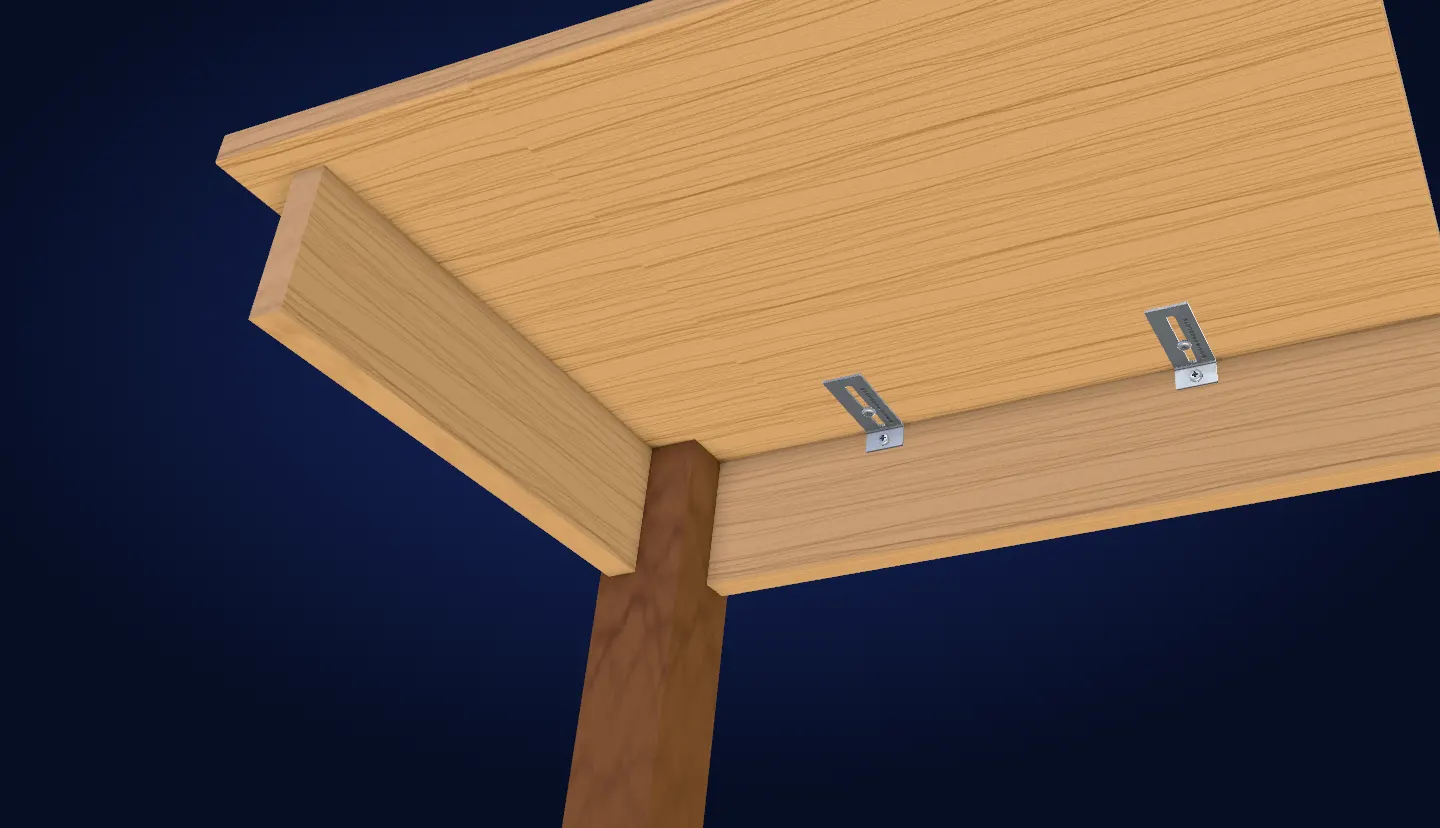

Screw the slotted leg up into the top and the tab into the apron. As a solid-wood top swells and shrinks with the seasons, the screw rides in the slot instead of splitting the top. (Movement shown larger than life.)
