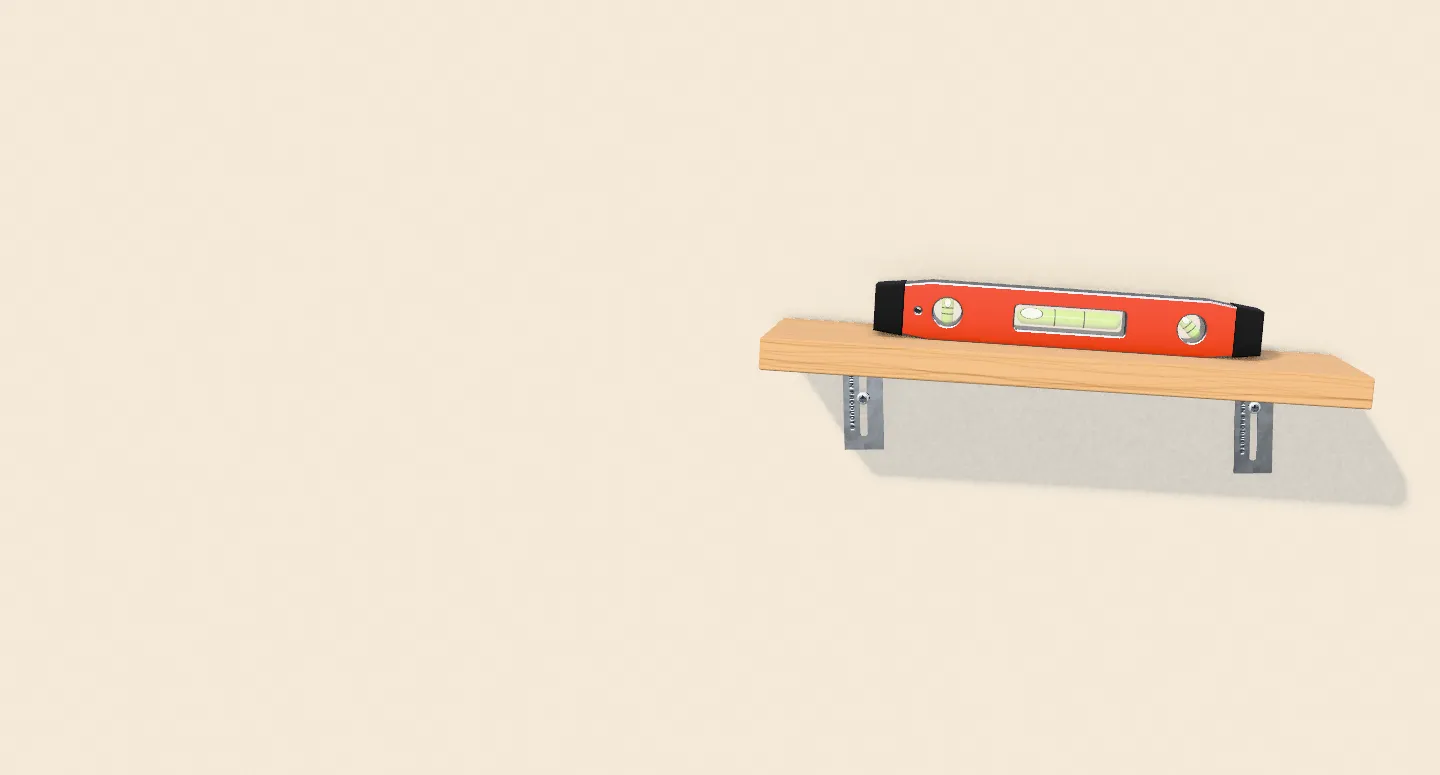

Mount the shelf on slotted L-brackets. Put one screw through each bracket’s slot, snug but still able to slide, rest the shelf on the brackets and set a level on top. Slide the low bracket up, or the high one down, until the bubble is centred, then tighten the screws. The slot does the adjusting, so there is nothing to redrill.
What you need
- Slotted L-brackets: at least two per shelf, more for a longer shelf
- Screws: #8 or smaller for BINKIN brackets; wood screws into studs, or anchors made for your wall where there is no stud
- A level
- A drill or driver, a pencil, and a stud finder if you have one
Step by step
- Find what you are fastening intoStuds hold best. Where there is no stud, use anchors made for your wall material and for what will sit on the shelf.
- Mark the heightPencil a light line where the shelf will sit. It does not have to be perfect; the brackets take up the difference.
- Hold the first bracket in placeSlotted leg flat against the wall, short leg pointing out under where the shelf will sit.
- Screw through the slot, snug but looseDrive one screw through the middle of the slot so the bracket holds its place but can still slide up and down.
- Mount the other brackets the same wayLine them up by eye on your pencil line. Close is good enough.

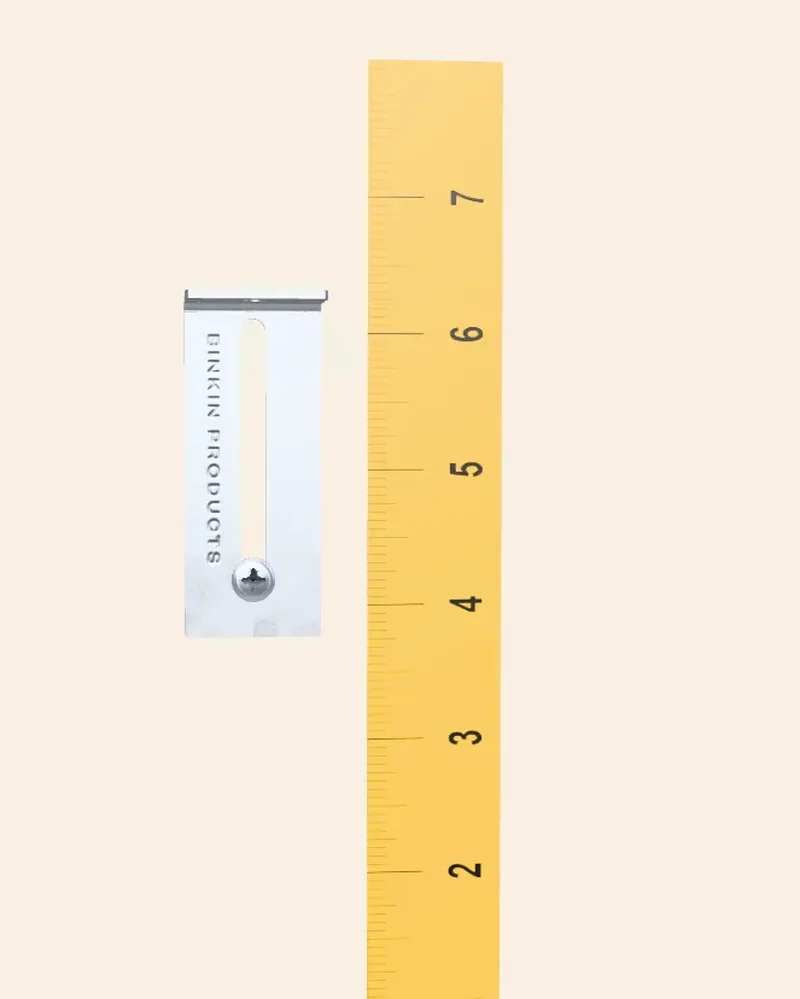

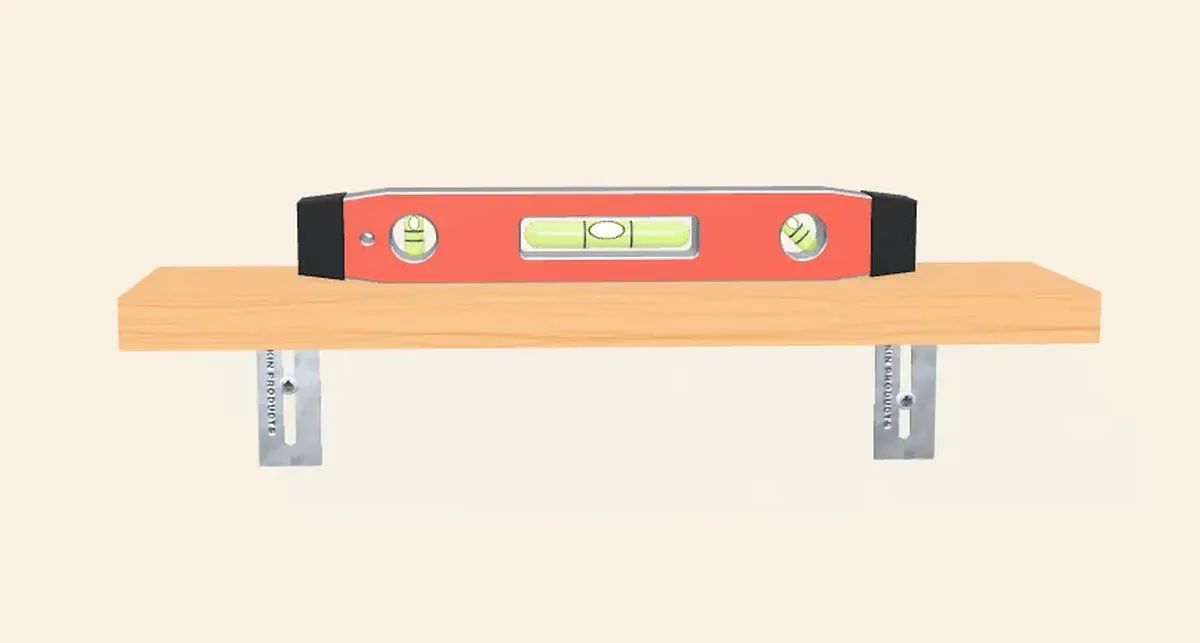

- Set the shelf and slide it levelRest the shelf on the tabs and put the level on top. Slide the low bracket up, or the high one down, until the bubble is centred. A 2-inch slot gives you nearly 2 inches to play with.
- Lock it downTighten the screws in the slots, then drive a screw up through each tab’s hole into the underside of the shelf.
Tips
- Long shelf? Add a bracket in the middle, slide it up until it just meets the shelf, then lock it.
- Shelf already up and crooked? Loosen the slot screw about a turn, slide the bracket, tighten it again. No new holes.
- Want the brackets out of sight? Set them a little back from the front edge. From standing height you see the shelf, not the hardware.
Why shelves end up crooked
Walls and floors are rarely true, and a drill bit can wander as it bites, so holes marked perfectly level can still land a little off. A fixed bracket locks that mistake in. A slotted one lets you fix it after the screws are in.
Questions people ask
Why is my shelf not level when I used a level to mark the holes?
Walls are rarely flat or true, and a drill bit can drift as it bites, so holes marked level can still land slightly off. Slotted brackets let you correct it after the screws are in: slide the bracket and tighten it again.
Can I level a shelf without taking it down?
With slotted brackets, yes. Loosen the screw in the slot about a turn, slide the bracket until the shelf is level, and tighten it again. No new holes.
What screws should I use?
For BINKIN brackets, #8 screws or smaller. Use wood screws into studs or wood, and anchors made for your wall where there is no stud.
