If the rail and post are still sound, screw a galvanized slotted bracket to the post under the sagging end, with the slotted leg upright and one screw through the slot snug but loose. Lift the rail until it is level, slide the bracket up under it, and screw through the bracket’s short leg into the rail. Then tighten the slot screw. If the post or rail end is rotten, replace that part first; a bracket cannot hold rotten wood.
What you need
- A galvanized slotted bracket, one per sagging rail end
- Exterior-rated #8 screws (coated or stainless), long enough to bite well into the post and rail
- A drill or driver, a level or string line, a helper or a block to lift the rail
Step by step
- Check the woodPush a screwdriver into the post and the rail end. If it sinks into soft, crumbly wood, replace that part first.

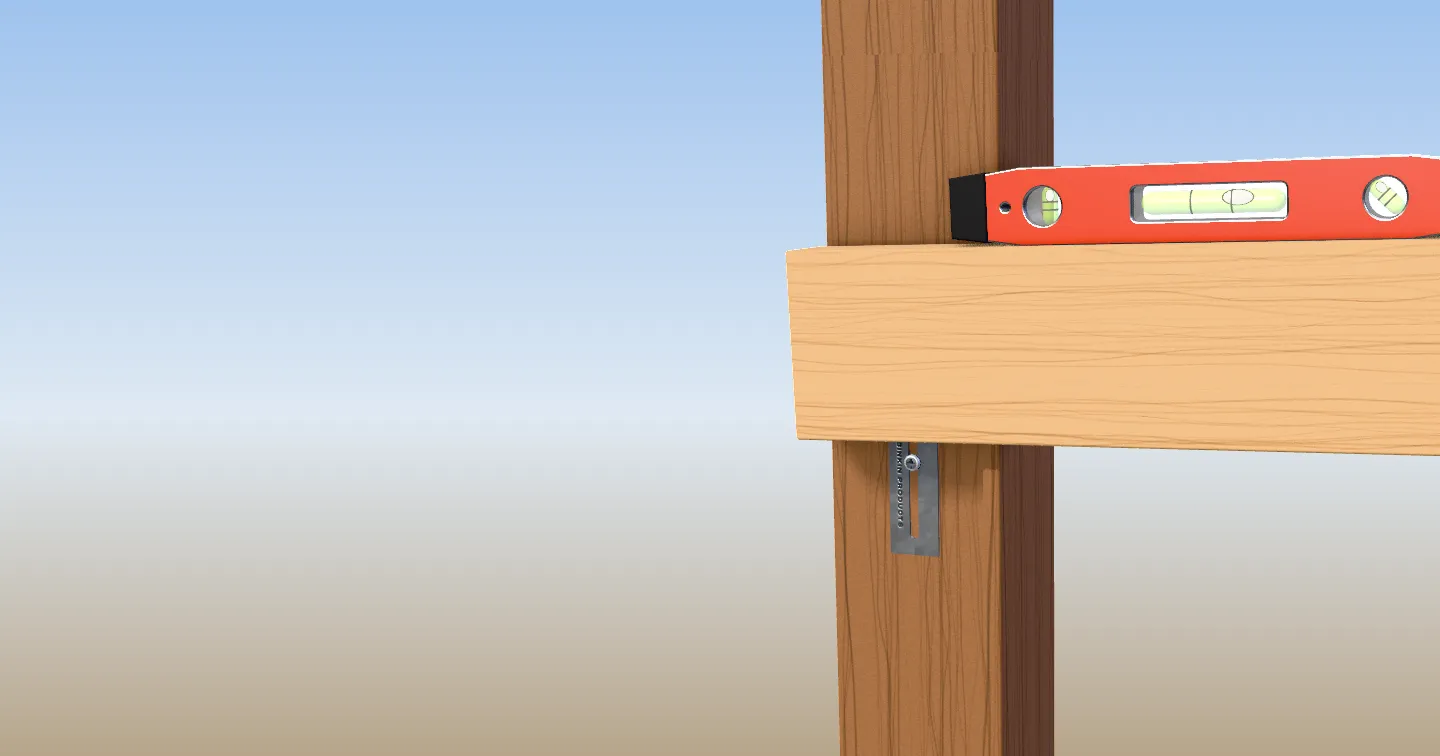

- Lift the rail to levelHave a helper hold the rail, or wedge a block under it, until a level or a string line from the next post says it is true.

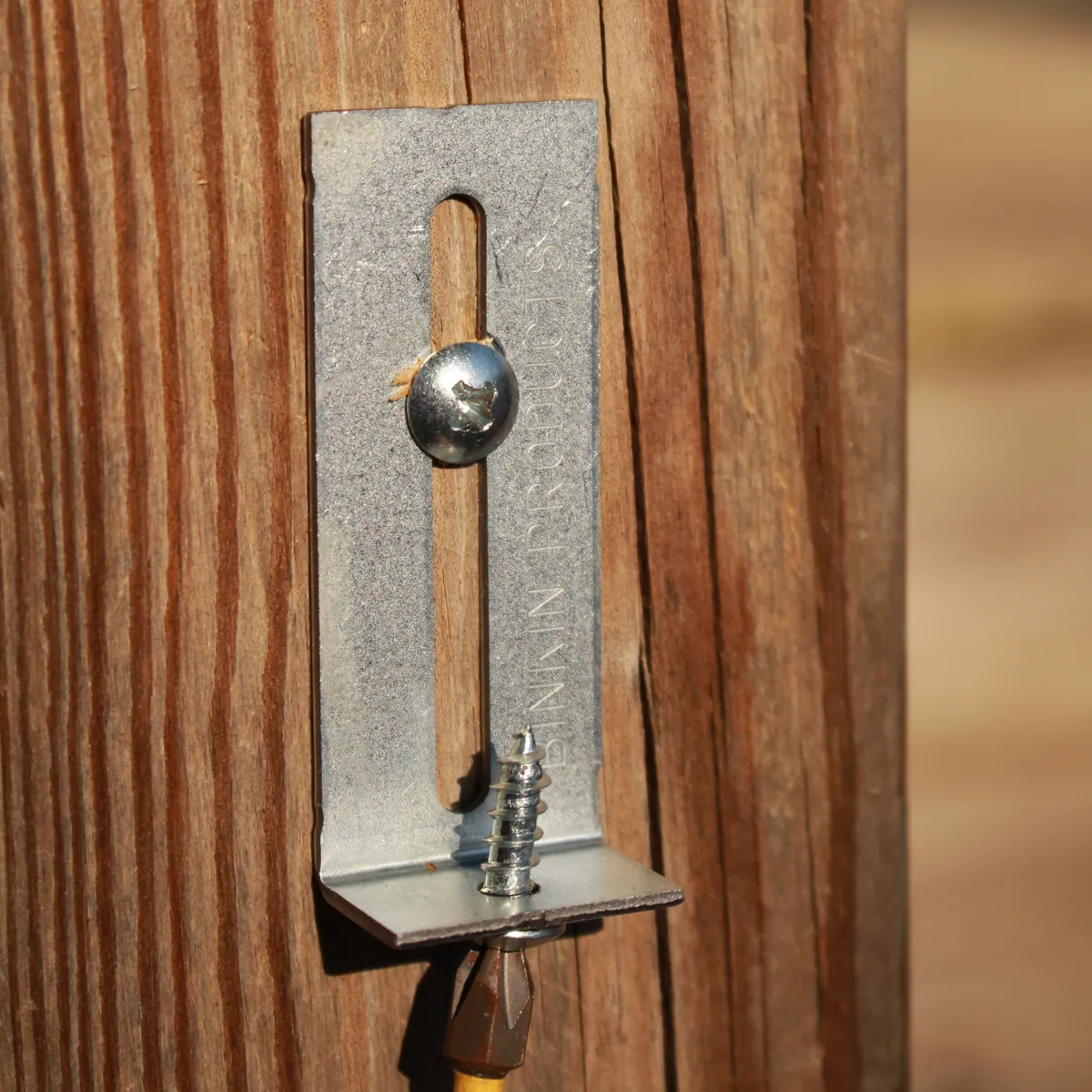

- Put the bracket on the postSlotted leg flat on the post and upright, short leg pointing out under the rail. Drive one screw through the slot, snug but loose.
- Slide it up to the railPush the bracket up until its short leg sits tight under the rail.
- Fix it to the railDrive a screw through the short leg’s hole into the rail.
- Lock itTighten the slot screw, and add a second screw lower in the slot if there is room. Remove the block or let your helper go.
Why fence rails sag
- The nails or screws holding the rail end to the post work loose as the wood swells and shrinks.
- The post leans, so the rail end drops with it.
- The wood at the joint rots.
A bracket fixes the first one well, and helps with a slight lean. It cannot fix rot or a post that is failing in the ground.
Outdoors
Use galvanized brackets and exterior-rated screws. Galvanizing resists rust, but rust resistant is not rust proof: somewhere constantly wet or salty will shorten any bracket’s life.
This is a light-duty repair for a rail that has pulled loose. For a fence that is leaning badly, a post that moves in the ground, or a gate that carries weight, repair or replace the post and use hardware rated for the job.
Questions people ask
Can I fix a sagging fence rail without replacing it?
Often, yes. If the rail and post are sound, a bracket on the post under the rail lets you lift it back to level and hold it there.
Why use a slotted bracket on a fence?
Because you can screw it to the post first, then slide it up until the rail is level, instead of measuring the exact spot before you drill.
What screws should I use outdoors?
Exterior-rated screws, coated or stainless. For BINKIN brackets, #8 or smaller.
Will galvanized brackets rust?
Galvanizing resists rust, but rust resistant is not rust proof. Somewhere constantly wet or salty will shorten their life.
